Custom AI agents: how to build, deploy, and scale them

You have a workflow that resists automation. A support queue where every ticket needs judgment, a fraud review that a static rules engine keeps getting wrong, or a data pipeline where the edge cases outnumber the happy path. Traditional automation breaks down here because the logic is too branchy to encode and too ambiguous to script.

Custom AI agents change the calculus. Instead of encoding every rule, you give a large language model tools, instructions, and memory, then let it reason through the workflow step by step. Gartner forecasts that 40% of enterprise applications will include task-specific AI agents by the end of 2026, up from less than 5% in 2025, largely for the workflows that have historically defied deterministic solutions.

This guide walks through what a custom AI agent is, how development works end to end, and how you build, test, deploy, and scale one in production.

What is a custom AI agent?

A custom AI agent is a system scoped to a specific business function that uses an LLM to plan and execute multi-step tasks, calls external tools to act on real systems, and operates within defined guardrails. It differs from a general-purpose assistant because you scope it, connect it to your data, and constrain it to your use case.

The agent’s architecture determines how these pieces fit together, and getting that right early saves you rework later.

The distinction that matters is autonomy. An agent decides which tool to call next, recognizes when a task is complete, and can halt and hand control back to a human when it hits a limit.

That decision-making loop, driven by a language model rather than a hardcoded flowchart, is what separates AI agents from scripts. Natural language processing lets the agent interpret unstructured inputs, while function calling lets it act on them.

Chatbots vs agents

You have probably shipped an AI chatbot before, and it is worth being clear about how an agent goes further. A chatbot follows scripted conversation trees and answers single-turn questions. It does not take actions across your systems, and it does not adapt its plan when the situation changes mid-conversation.

AI agents, by contrast, reason dynamically and call tools to change state in the systems they connect to. The table below contrasts the two so you can decide which one your use case actually needs.

The practical takeaway is scope. If your problem is answering FAQs, a chatbot is fine. If it involves reasoning across several systems and taking real actions, you need an agent that can plan and execute autonomously.

Types of AI agents

Your agent’s shape follows its job. Most production AI agents fall into a handful of recognizable patterns, though plenty of real agents don't fit neatly into any single one. Naming these common shapes early still helps you scope architecture and tooling before you write code.

• Conversational agents: Handle natural-language interactions for support, triage, and internal help desks, often with tool access to resolve requests directly. ChatGPT popularized this pattern, though production deployments typically need tighter scoping and guardrails than a general chat interface provides.

• Retrieval and analysis agents: Pull from internal knowledge bases and databases to answer domain questions or surface insights in finance, healthcare, and operations. These AI agents rely on RAG to ground answers in your private data.

• Automation agents: Take over repetitive, multi-step processes like data entry, record updates, and transaction handling that used to require brittle scripting. Teams sometimes call these autonomous agents because they run end to end with minimal human intervention.

• Compliance and risk agents: Review transactions, documents, and processes against regulatory rules, flagging exceptions for human review instead of a manual audit pass. Financial services, healthcare, and insurance teams lean on these most, since the rules they enforce are already written down and change on a predictable schedule.

• Orchestrator agents: Coordinate other specialized AI agents, routing each subtask to the agent best suited to handle it.

Most real deployments blend these. A support agent retrieves knowledge, reasons over it, and then takes an action, which means your architecture should assume overlap rather than a single clean category. Agentic AI as a discipline is specifically about designing agents that combine these patterns into reliable, production-grade systems.

When should you build a custom AI agent?

You should reach for an agent when a workflow has resisted conventional automation, not before. Building one means rethinking how your system makes decisions, so the payoff needs to justify that shift. If a deterministic script or a simple form would do the job, a script is cheaper to build and easier to maintain.

OpenAI’s practical guide to building agents frames three signals that a workflow is a good candidate. Each points to a place where rule-based systems tend to break down.

1. Complex decision-making: The task involves nuanced judgment or context-sensitive exceptions, like approving a refund that falls outside standard policy. Foundation models handle this kind of ambiguity far better than branching logic does.

2. Hard-to-maintain rules: The existing ruleset has grown so large that every update risks breaking something, as with a sprawling vendor security review. AI agents can absorb policy documents and apply them flexibly instead of encoding each condition as a rule.

3. Heavy reliance on unstructured data: The work means interpreting documents, free text, or conversation, like triaging an insurance claim from a customer’s description.

If your use case clears at least one of these bars, an agent is worth prototyping. If it clears none, validate that a deterministic solution truly falls short before you commit engineering time.

How does custom AI agent development work?

You build a custom AI agent through a repeatable sequence, not a single big-bang release. Each phase narrows scope and reduces risk, so you reach a working prototype before you invest in scale. The stages below map the path from a vague idea to a deployed system.

Discovery and scoping

You start by defining exactly what the agent does and where it stops. This phase sets the agent’s purpose, the tasks in scope, the boundaries it must not cross, and the success metrics you will grade it against.

For a loan-servicing agent, that might mean collections outreach and compliance tracking, with anything touching account closure explicitly out of bounds. Tight scoping is the single highest-leverage decision you make. An agent with a fuzzy mandate is impossible to evaluate and dangerous to deploy, so resist the urge to make it do everything at once.

Model and architecture selection

Next, you choose the model or models and decide how the agent gets its knowledge. The core architectural fork is whether you rely on retrieval-augmented generation to feed the model live context, fine-tune a model on your data, or combine both. RAG suits fast-moving knowledge that changes daily. Fine-tuning suits stable, specialized behavior.

Model choice is rarely one model for everything. A cheap, fast model can handle intent classification while a stronger model handles the reasoning-heavy steps. This is where LLMs from providers like Anthropic, Google (Gemini), and OpenAI differ most, and your agent architecture should account for that.

Tool integration and function calling

You then connect the agent to the systems it needs to act on. Tools are the functions and APIs the agent can call through function calling: querying a database, updating a CRM record, or sending a message.

Each AI tool needs a clear name, typed parameters, and a description precise enough that the model knows when to reach for it. Well-documented, reusable tools are worth the upfront effort.

Overlapping or vaguely described tools confuse the model far more than a large tool count does. Frameworks like LangChain standardize tool definitions so the same tool works across multiple AI agents.

Prompt engineering and memory setup

Finally, you write the instructions that govern behavior and wire up memory. Your system prompt defines the agent’s role, its steps, and how it handles edge cases. Memory stores prior interactions so the agent maintains continuity across turns and sessions rather than starting cold every time.

Good instructions read like a well-written runbook. Break dense policies into numbered steps, tie each step to a concrete action, and spell out what to do when information is missing. Prompt engineering for AI agents is less about clever tricks and more about clarity.

Most production AI agents improve steadily once you wire evals into the release path, because every failed run becomes a test case for the next version.

Agent design foundations

You can reduce almost any agent to three parts working together. Getting these foundations right matters more than any framework choice, because a shaky foundation shows up as unpredictable behavior in production. The sections below cover each part and how they combine into orchestration.

Selecting your models

You choose models by matching capability to task, not by defaulting to the biggest available. Different AI models trade off accuracy, latency, and cost, and most agents run several tasks that do not all need the same horsepower.

A reliable approach is to prototype with the most capable model everywhere first, establish a quality baseline, then swap in smaller models where they still pass your evals. That way you optimize cost without guessing where the model actually matters.

LLMs from Anthropic, OpenAI, and Google (Gemini) each have distinct strengths: Claude excels at long-context reasoning, GPT-4 at broad instruction following, and Gemini at multimodal tasks.

Claude Code, Anthropic’s agentic coding tool, is a useful reference point for how a foundation model can power a tightly scoped agent that operates autonomously within a single domain. It also shows how Claude Code constrains tool access and instructions to keep the agent reliable within its scope.

Defining primitives

You define primitives so the agent can reach beyond text and act on real systems. Tools are the most common primitive, but frameworks like Mastra also expose workflows for deterministic multi-step execution and processors for shaping input and output around a model call. Broadly, AI agents use three tool categories, and naming them helps you audit what your agent can actually do.

• Data tools: Retrieve context the agent needs, such as querying a transactions database, reading a PDF, or searching the web.

• Action tools: Change state in external systems, such as sending an email, updating a record, or opening a ticket.

• Orchestration tools: Expose other agents as callable tools, letting one agent delegate a subtask to a specialist.

Standardize each tool definition so the same tool works across multiple agents. Providers such as Anthropic and OpenAI expose function calling, and the emerging standard for reusable tooling is the Model Context Protocol. MCP servers give your AI agents a standard interface for connecting to third-party systems without building a bespoke connector for each one.

Configuring instructions

You get the most out of an agent by writing instructions with the same care you would give production code. Clear instructions cut ambiguity, which directly improves how consistently the agent selects tools and completes steps. Vague instructions produce the erratic behavior teams often blame on the model.

Start from documents you already have. Operating procedures, support scripts, and policy pages convert cleanly into agent routines. You can even use a capable model to draft a numbered instruction set from an existing help-center article, then refine it by hand.

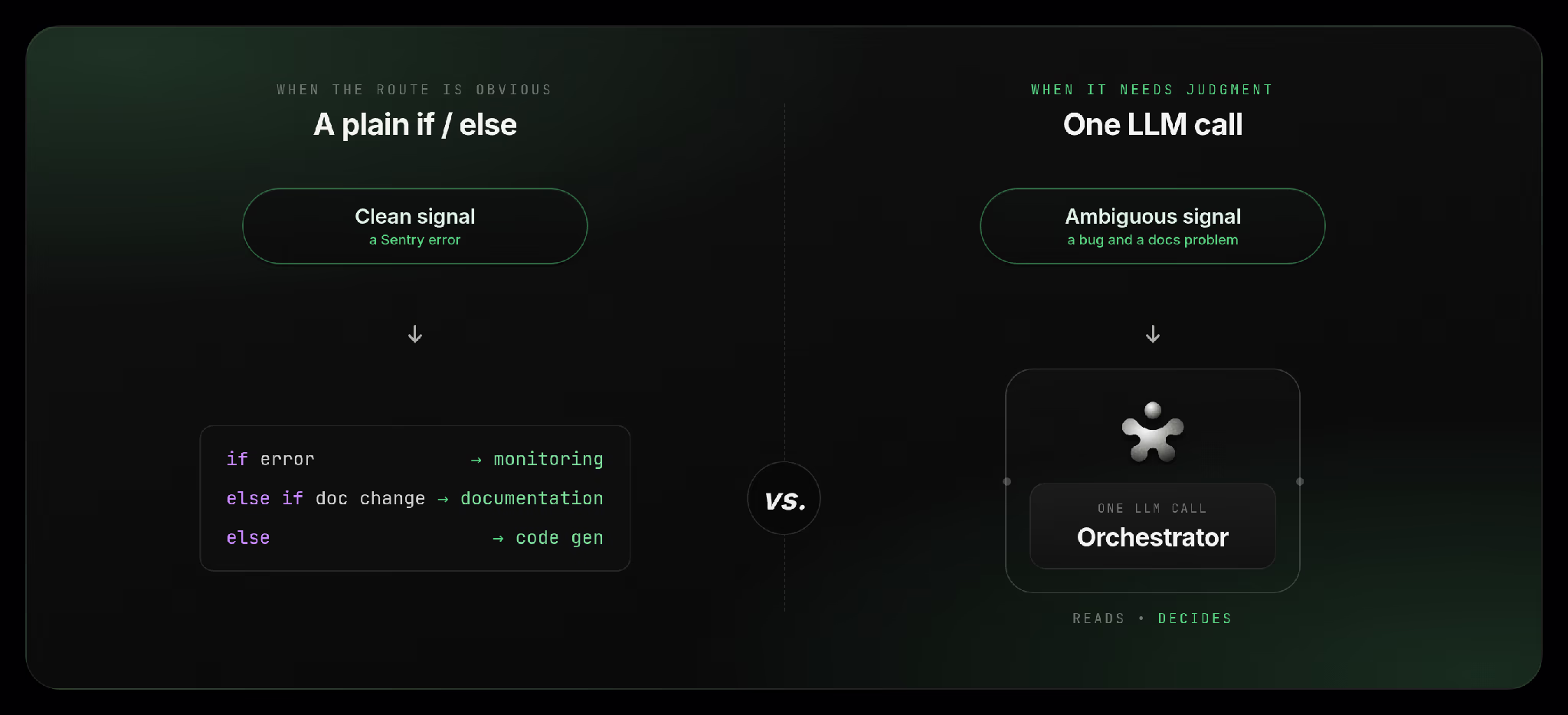

Orchestration and multi-agent patterns

You decide between one agent and many based on how complex the workflow gets. Start with a single agent and add tools incrementally, because one agent is easier to evaluate, debug, and maintain. Reach for a multi-agent system only when one agent starts failing to follow branchy instructions or keeps picking the wrong tool.

When you do split, two patterns cover most cases. In the manager pattern, a central agent coordinates specialists through tool calls and synthesizes their results into one response. In the decentralized pattern, peer agents hand off control to one another, which suits triage and routing where a specialist should fully take over.

Principles of Building AI Agents treats this incremental path, from one agent to many, as the default way to keep complexity in check. These agentic workflows scale better than monolithic agents because each specialist stays simple enough to evaluate independently.

Extending agents with memory and retrieval

The three foundations cover what an agent can do and say. What it remembers is a fourth pillar. You make an agent genuinely useful by giving it context beyond the current prompt. Two mechanisms do most of the work: memory for continuity across interactions, and retrieval for pulling in knowledge the model was never trained on. Together they turn a stateless model into an agent that remembers and reasons over your data.

User context and personalization

You personalize an agent by feeding it what it already knows about the user. The agent draws on past interactions, stated preferences, and behavioral signals to shape its response, then persists that context in memory so it carries forward across sessions. A returning user should not have to re-explain their situation every time.

Personalization is a memory-design problem as much as a modeling one. Decide what to store, what to summarize, and what to forget, because unbounded memory grows expensive and noisy fast.

Knowledge retrieval and dynamic reasoning

You ground an agent in current, private data using retrieval-augmented generation. The model pulls relevant passages from your internal systems or knowledge base at query time and hands them to the model as context, so answers reflect your data rather than the model’s training cutoff.

The reasoning stays dynamic because retrieval happens per request. As intent and context shift, the agent retrieves different material and adapts, instead of replaying a fixed answer.

Adding guardrails and agent security

With memory and retrieval in place, an agent can act on more information, which raises the stakes if that information or its actions go wrong. You keep AI agents safe in production by layering defenses, not by trusting a single check. Guardrails manage data-privacy risks like system-prompt leaks and reputational risks like off-brand output. No single guardrail is enough, so effective agents combine several specialized ones that each catch a different class of failure.

Types of guardrails

You assemble guardrails to cover the specific risks your use case exposes. The set below covers the common ones, and you layer in more as real-world failures reveal new gaps.

• Relevance and safety classifiers: Flag off-topic queries and detect jailbreak or injection attempts before they reach the agent’s core logic.

• PII and moderation filters: Vet inputs and outputs for personal data and harmful content to protect users and your brand.

• Tool safeguards: Rate each AI tool by risk based on write access, reversibility, and financial impact, then gate high-risk calls behind extra checks.

• Rules-based protections: Apply deterministic measures like input-length limits, blocklists, and regex filters to stop known threats cheaply.

Pair these with standard security practice. Guardrails complement authentication, access controls, and human review. They do not replace them.

Building guardrails against prompt injection

You defend against prompt injection by treating every input as untrusted and running checks concurrently with the agent. A useful heuristic is to start with data-privacy and content-safety guardrails, then add new ones as you encounter real edge cases in production.

Optimistic execution, where the agent works while guardrails run alongside and can trip an exception, keeps latency low without dropping protection.

Plan for human intervention as a first-class safeguard. Set failure thresholds that escalate to a person after repeated retries, and require human sign-off on sensitive, irreversible actions like large refunds until the agent has earned trust.

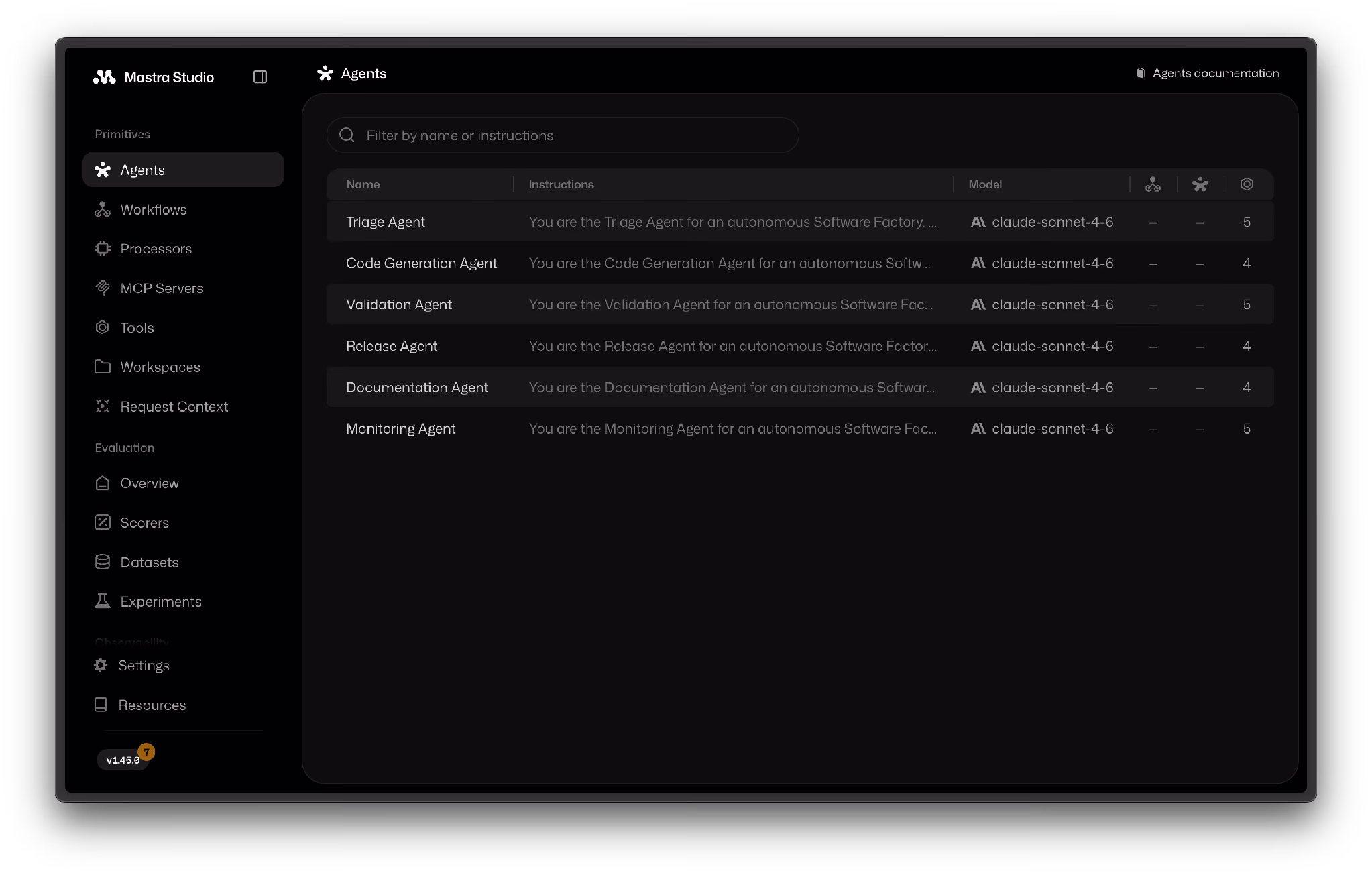

Building agents with Mastra

You can build every layer described above in TypeScript with Mastra, an open-source framework released under Apache 2.0. It gives you agents, workflows, memory, and observability in one place, so you are not stitching together a separate library for each concern.

The model router reaches 90+ providers through one interface, which makes the prototype-then-downshift model strategy practical without rewiring your code. The workflow engine lets you chain steps with .then() and .branch() for deterministic orchestration.

It also exposes AI agents and tools over MCP servers for clean integration. Built on Vercel’s AI SDK, it is free to start with no seats or usage tiers.

Build your first agent on Mastra.

Testing, evaluation, and observability

You cannot ship AI agents responsibly without measuring them, because an agent can return a clean response while quietly doing the wrong thing. Testing catches regressions before release, evals score quality against a bar you define, and observability tells you what actually happened on every run.

Production AI agents need all three layers working together, not just a passing demo on happy-path inputs.

Evals and datasets

You measure agent quality with evals run against curated datasets. An eval scores outputs on criteria you care about, whether that is factual accuracy, tool-selection correctness, or adherence to a rubric, often using a stronger model as a judge.

The dataset is your ground truth: real scenarios, edge cases, and known-hard inputs the agent must handle. Wire evals into your pipeline so they run on every meaningful change, because that is how you catch a prompt tweak that quietly degrades one workflow while improving another.Mastra’s guide to evals walks through building datasets that catch these regressions before they ship.

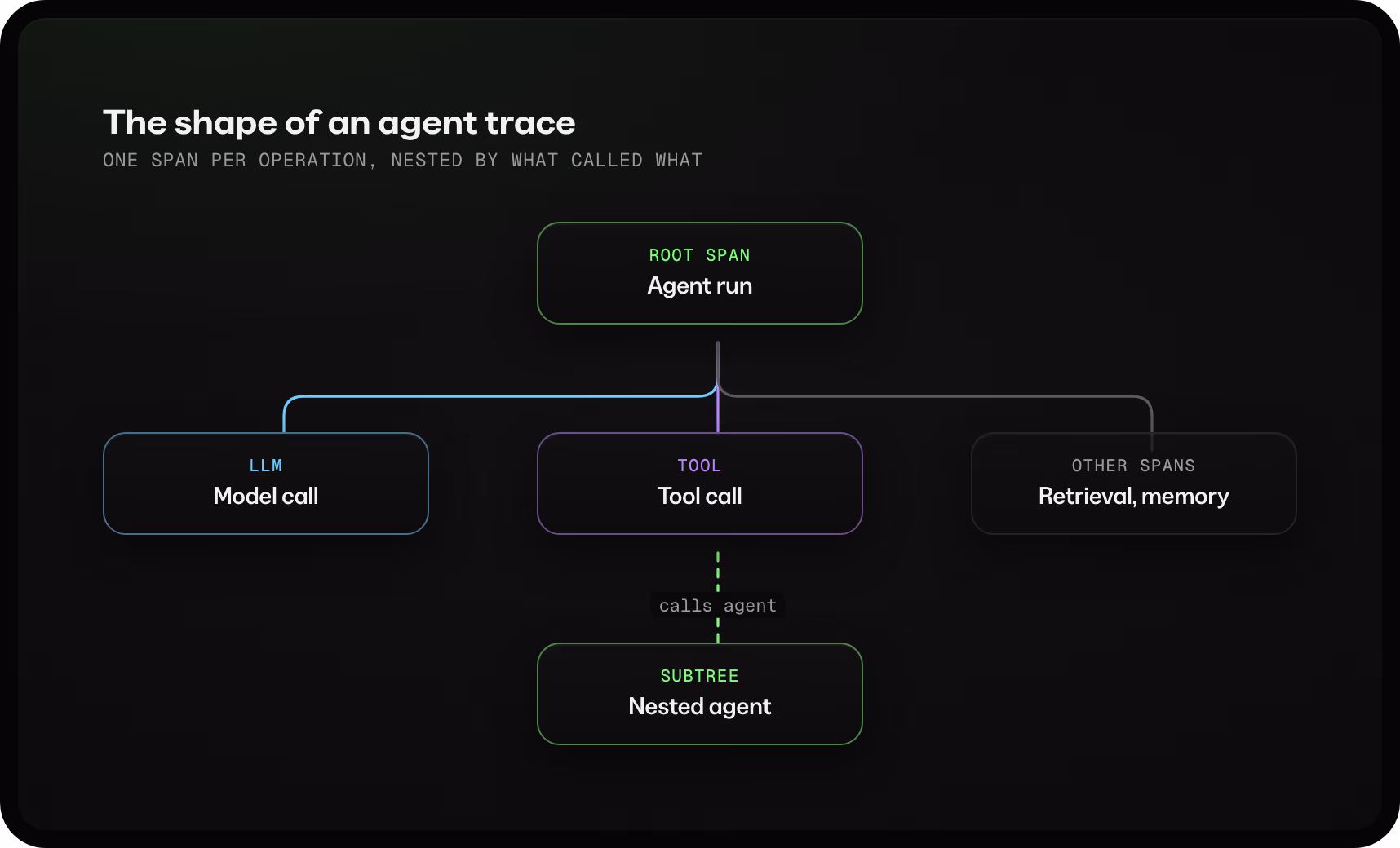

Tracing and debugging agent runs

You debug agents through tracing, which records the full tree of what happened during a run. Each model call, tool invocation, retry, and workflow step becomes a span with its inputs, outputs, latency, and token usage.

When an agent behaves unexpectedly, the trace shows you exactly which decision went wrong instead of leaving you to guess. Tracing is non-negotiable for multi-step agents. A single user request can trigger a dozen internal operations, and without a span tree you have no way to reconstruct the path the agent took.

Monitoring agents in production

You keep deployed AI agents healthy by monitoring them continuously, not just at launch. Production traffic surfaces failures your test set never imagined, so watch error rates, latency, token spend, and eval scores over time. Drift in any of these is an early signal that behavior is changing.

Close the loop by feeding production failures back into your dataset. Every real-world edge case becomes a new eval, which is how agents improve rather than silently degrading after release.

Integrating agents with existing systems

You get value from AI agents only once they connect to the systems your business already runs on. Integration starts with a clear map of your current architecture: the databases, communication protocols, and APIs already in place, plus the exact points where the agent will read and write.

From there, you assign the agent’s roles and permissions to match business objectives, wire up the connections through function calling, and test the integrated system for performance, reliability, and security before it touches real traffic.

MCP servers are increasingly the clean way to expose tools and data to AI agents, since they give you a standard interface instead of a bespoke connector per system.

Ongoing monitoring then keeps the integration stable as the surrounding systems change.

Deploying your agent

You deploy an agent much like any other service, with the added discipline of a validation gate. Test against real scenarios, confirm the agent meets your accuracy target, and only then promote it to production behind monitoring.

Deployment is not a finish line. It is the point where your observability and eval work starts paying off for the AI agents you ship.

Match the deployment target to your stack rather than forcing a rewrite. A TypeScript agent should run wherever your other services run, whether that is a serverless platform, a container, or an existing Node or Express backend.

Roll out incrementally, validate with a slice of real users, and expand the agent’s scope as confidence grows. The path to a reliable deployment is small steps with real feedback, not a single high-stakes launch.

Use cases and benefits

You see the clearest return from custom AI agents in workflows that are high-volume, judgment-heavy, or both. The value shows up as work that happens without a person in the loop for every step, which frees your team for the decisions that actually need them.

Agents automate workflows that previously demanded constant human context-switching. The table below shows common industries and the shape of work AI agents take on in each.

The underlying benefits are consistent across every deployment:

• Around-the-clock availability: agents work nights, weekends, and demand spikes without adding headcount.

• Lower per-task cost: automation absorbs repetitive work that would otherwise need a person on every request.

• Scalability without linear hiring: request volume grows without a proportional increase in staff.

• Consistent output at scale: the same logic and standards apply to every task, cutting the variability that comes from different people handling the same work differently.

• Compliance built into the workflow: agents can carry regulatory rules directly into their logic, which matters most in financial services, healthcare, and other regulated industries.

• Continuous improvement: agents keep getting sharper as you feed production feedback back into their evals and instructions.

What agents cost

You should budget across three lines: build, model usage, and operations. Build cost depends on scope and whether you use a framework or start from scratch. An open-source framework removes licensing fees but you still invest engineering time in scoping, tools, and evals.

Model usage is your recurring variable cost, driven by token volume across every model call, tool decision, and retrieval step. This is why model selection matters financially. Running classification on a small LLM and reasoning on a large one can cut spend dramatically without hurting quality.

Tracing token usage per run is how you keep this line honest. Operational cost covers hosting, monitoring, and the human review that guardrails escalate to. These are ongoing but predictable, and they scale more gently than headcount would for the same workload.

The most expensive AI agents are the ones you deploy without evals and observability, because you pay for their mistakes in production instead of catching them in testing.

Wrapping up

If your workflows have resisted scripts and rules engines, custom AI agents are where you start. Give your agent clear instructions and well-defined tools, validate it against real scenarios, and expand its scope only once your evals and traces show it working.

If you are building in TypeScript, Mastra gives you agents, memory, evals, and observability in one framework so you can go from prototype to production without swapping tools along the way.
