AI agent architecture: patterns, components, and production design

You can wire up an agent in an afternoon. Surviving contact with production is the hard part: a system that handles multiple tool calls and a handoff without corrupting state is where AI agent architecture earns its keep.

Most agent failures are not model failures. They are design failures: unbounded loops, context overflow, no way to inspect decisions, and no guardrails when a tool call goes sideways. A Gartner governance analysis predicts that by 2027, 40% of enterprises will demote or decommission autonomous agents due to governance gaps found only after production incidents occur. The architecture you choose upfront determines whether you catch those gaps or discover them the hard way.

This guide walks through the components, patterns, and production concerns for designing agent systems that hold up, from the core loop to multi-agent orchestration and observability.

What is AI agent architecture

AI agent architecture is the structural design that lets a language model plan, decide, and act toward a goal instead of just returning text. It defines how the reasoning core connects to memory, tools, and control flow, and how those pieces coordinate across a task that spans multiple steps. You can also think of it as the blueprint that turns a single model call into an agentic AI system capable of sustained, goal-directed work. If you are still working out what separates an agent from a plain model call, that foundation is worth reading before going deeper into architecture.

An agent architecture differs from a plain model call in one key way: the model gets agency. It can choose which tools to invoke, decide how many steps a task needs, and adapt its plan based on intermediate results. That autonomy is what separates an agent from a scripted workflow, and it is also what makes the agentic AI architecture around it matter so much.

Core components of an AI agent

Your agent architecture reduces to a small set of parts that every serious system shares. The reasoning core plans and decides. Memory holds context across steps. Tools connect the agent to external systems. A routing or control layer decides what runs next.

• Reasoning core: an LLM that interprets input, plans a sequence of actions, and evaluates results.

• Memory: short-term context for the current task plus long-term storage for facts and preferences.

• Tools, workflows, and processors: APIs, database queries, and sub-agents the model can invoke to act on the world, plus workflows for deterministic multi-step execution and processors for shaping input and output around a call.

• Routing and control: the logic that decides which tool, step, or agent handles the next unit of work.

These four map cleanly onto how most frameworks structure agents, and keeping them separate in your design makes each one easier to test and swap.

The perceive-reason-act loop

Your agent operates as a loop, not a single pass. It perceives input and current state, reasons about what to do next, acts by calling a tool or producing output, then observes the result and repeats. This cycle is the engine behind agentic behavior.

The ReAct pattern formalizes this. The model structures each turn into a thought, an action, an action input, and an observation, then loops until it concludes it has the answer. The loop gives an agent its autonomy, and it is also the source of runaway costs when nothing caps the number of iterations. The original ReAct paper walks through the reasoning behind interleaving thought and action, if you want the source rather than the summary.

Set an iteration limit on every loop. An agent that never stops is not autonomous, it is a bug with a token bill.

Agentic vs. non-agentic systems

You do not always need an agent. A non-agentic system uses an LLM for a single, linear task: classification, summarization, translation. The model takes input, produces output, and stops. There is no planning, no tool selection, and no loop.

Agentic AI systems add autonomy. The model decides the number of steps, the order of execution, and which tools to call, none of it hardcoded. Autonomous agents suit open-ended problems where you cannot map the steps in advance. That flexibility also introduces nondeterminism, which is why observability and guardrails move from nice-to-have to mandatory once you cross this line.

The three mechanisms behind every agent run

You get more predictable systems when you understand what actually happens inside an agent run. Three mechanisms drive every agent: the model as a reasoning engine, tool calling as the bridge to external systems, and planning as the logic that sequences the work.

The LLM as the reasoning core

Your large language model supplies the intelligence for planning and execution. It reads the user input, builds a plan for the sequence of actions needed, and often makes recursive calls to itself to break a large task into smaller ones. The model is the decision-maker, but it is not the whole system.

This is the critical distinction. The LLM proposes actions, but the AI agent architecture around it constrains, validates, and executes them. A capable model with no guardrails produces an unreliable agent. A modest model inside a well-designed agent architecture often outperforms it.

Tools, function calling, workflows, and processors

Your agent reaches the outside world through tools. Tool integration through function calling lets the model request a specific operation, fetch an order status, run a query, send a message, by emitting a structured call the runtime executes. The model does not run the code. It decides which function to invoke and with what arguments, and your runtime returns the result. Beyond simple tool calls, frameworks like Mastra also expose workflows for orchestrating deterministic, multi-step sequences and processors for transforming input and output around each model call.

The Model Context Protocol standardizes this. MCP is an open protocol that lets you expose data and functions to agents in a consistent format, so tools become discoverable and reusable across systems instead of hardcoded per agent.The full specification covers the message format and transport details if you are implementing a server or client directly.

Planning and decision-making

Your agent needs a way to decide what happens next, and this is where architectures diverge. Simple agents follow a router that maps intent to a function. More autonomous agents use task decomposition, breaking a goal into subtasks and sequencing them dynamically based on what each step returns.

The tradeoff is control versus flexibility. Deterministic planning is predictable and easy to debug but rigid. LLM-driven planning adapts to novel inputs but is harder to constrain. Most production systems land in between, using fixed control flow for the skeleton and letting the model decide within bounded steps.

Agent memory and context management

You cannot build a useful agent without solving memory. Memory systems are what bridge the gap between a stateless model and a persistent, context-aware agent. Your architecture has to supply the right context at the right time while staying inside the context window. How you manage that context often matters more than which model you pick.

The four types of internal agent memory

Your agent draws on distinct kinds of memory, each serving a different role in a task. Treating them as one undifferentiated blob is a common cause of bloated prompts and degraded output. Mastra's ownmemory documentation walks through how these categories map onto a working framework implementation.

Mapping your data onto these categories keeps each prompt lean and makes retrieval targeted instead of dumping everything into the window. For a closer look at how working, episodic, semantic, and procedural memory fit together, the memory deep dive covers implementation patterns for each type.

Short-term vs. long-term memory

Your agent needs both immediate and persistent recall. Short-term memory holds the state of the current task, so an agent can answer a follow-up like “which product sold most in that region?” by referencing the prior turn. It lives in the context window and disappears when the task ends.

Long-term memory persists across sessions. If a user always asks about one region, the agent can store that as a preference and apply it later. Long-term memory usually lives in an external store rather than the prompt, which keeps context small and lets the agent scale to many users without exhausting its window.

External context and retrieval (RAG)

Your agent often needs knowledge it was never trained on. Retrieval-augmented generation solves this by fetching relevant documents from a vector database and injecting them into context at query time. Some architectures pair this with a knowledge graph for structured relationships between entities. The agent retrieves, grounds its reasoning in the retrieved text, then acts.

For TypeScript teams, Mastra’s RAG pipeline handles chunking, embedding, and retrieval so you can wire external knowledge into an agent without stitching together separate services. Retrieval quality depends heavily on your data and metadata, which makes clean, well-labeled sources one of the highest-leverage investments in the whole architecture.

Core AI agent architecture patterns

You will recognize most agent designs as variations on a few foundational patterns. An AI agent architecture diagram of any production system will trace back to one of these shapes or a combination. Each trades reactivity for deliberation differently, and picking the right one starts with how much planning your task actually requires.

Architecture pattern comparison

The table below summarizes the four foundational patterns. You can use it as a quick reference when deciding which fits your workload.

Reactive architectures

You use a reactive architecture when speed matters more than planning. Reactive architectures map situations directly to actions. They respond to immediate input without memory or prediction, which makes them fast and predictable but unable to learn from the past or plan ahead.

This suits narrow, well-defined tasks: a classifier, a simple router, a reflex response to a known trigger. When a problem needs no history and no lookahead, a reactive design is the cheapest, most debuggable option you can ship.

Deliberative architectures

You reach for a deliberative architecture when the agent has to reason before it acts. Deliberative architectures build an internal model of the environment, predict outcomes, and plan a sequence of actions toward a goal. They analyze rather than react.

The cost is latency and complexity. Every planning step consumes tokens and time, so deliberative designs fit problems where a wrong action is expensive enough to justify thinking first. Contract review, multistep research, and diagnostic workflows all favor deliberation over reflex.

Hybrid and layered architectures

You get the best of both worlds by layering reactive and deliberative behavior. A hybrid architecture handles routine input reactively and escalates to deliberative planning only when a task demands it. Leadership or control can shift between layers based on the phase of the work.

This versatility comes with a management cost. Balancing when to react and when to deliberate requires clear rules, and the added machinery makes hybrid systems harder to reason about. For most production agents, though, a layered design is the honest middle ground between rigidity and unpredictability.

Cognitive and neural-symbolic architectures

You encounter cognitive architectures at the most advanced end of the spectrum. They combine perception, memory, reasoning, and adaptation into distinct modules that mimic human-like thinking. The belief-desire-intention model is a well-known example: beliefs represent knowledge, desires represent goals, and intentions represent committed plans.

Neural-symbolic designs pair a neural model with symbolic reasoning to get both pattern recognition and explicit logic. These architectures are powerful for complex, uncertain environments, but their overhead rarely justifies itself outside research or high-stakes domains. Most teams never need this level.

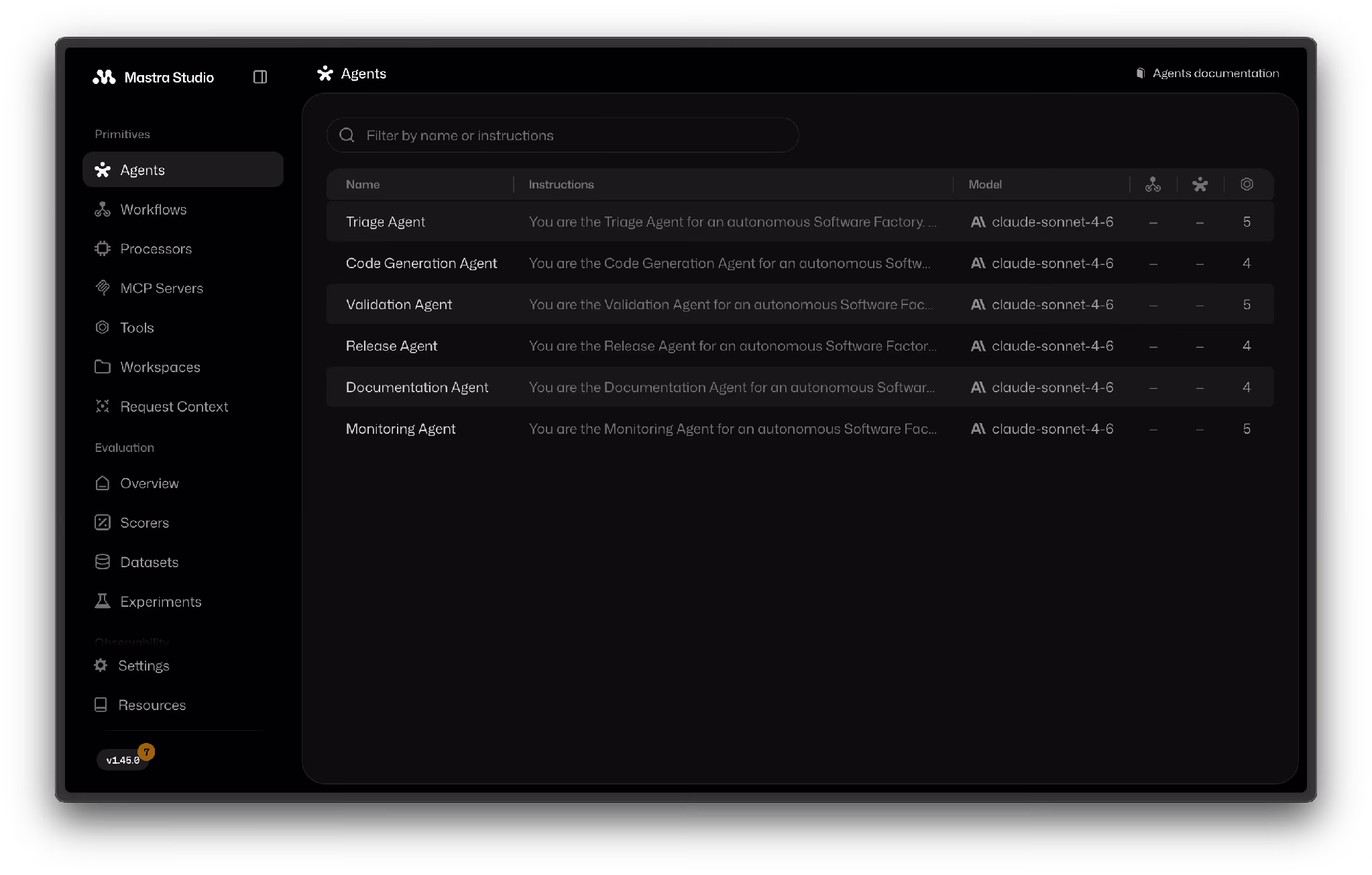

Building agents with Mastra

You can build the AI agent architecture described in this guide directly in TypeScript with Mastra, an open-source framework (Apache 2.0) for AI agents. It provides agents, workflows, memory, and observability as composable pieces, so the four core components map onto real primitives instead of glue code.

Mastra’s model router reaches 90+ providers through one interface, so you can assign a cheaper model to a classification sub-agent and a stronger one to the planner without rewriting integrations.

Its workflow engine gives you deterministic control flow with branching and suspend-resume, while built-in tracing surfaces every model call and tool invocation as an inspectable span. Here is a minimal workflow definition:

import { Workflow } from "@mastra/core/workflows";
const researchWorkflow = new Workflow({ name: "research" })
.then(classifyIntent)
.branch({
  "deep-dive": runResearchAgent,
  "quick-answer": runLookupAgent,
})
.then(formatOutput);

The tradeoffs are honest: Mastra is TypeScript-only, so it is not a fit for Python-first teams. If your stack is TypeScript, though, it collapses the components, orchestration, and observability from this guide into one framework.

Build your first TypeScript agent with Mastra.

Single-agent vs. multi-agent architectures

You face an early and consequential fork: solve the problem with one capable agent or split it across several. The right answer is usually the simpler one, and understanding both helps you avoid coordinating agents you did not need.

Single agent, multitool

You can solve a surprising range of problems with one agent that has good tool access. A single agent reasons, chooses from its available tools and knowledge sources, and loops through model calls until the task is done. It is simpler to design, cheaper to run, and far easier to debug and monitor.

The limits show up under load and breadth. As you pile on tools and knowledge sources, the agent’s behavior gets harder to predict, and a single agent can become a bottleneck on high-volume or cross-domain work. Until you hit those walls, single-agent is the right default.

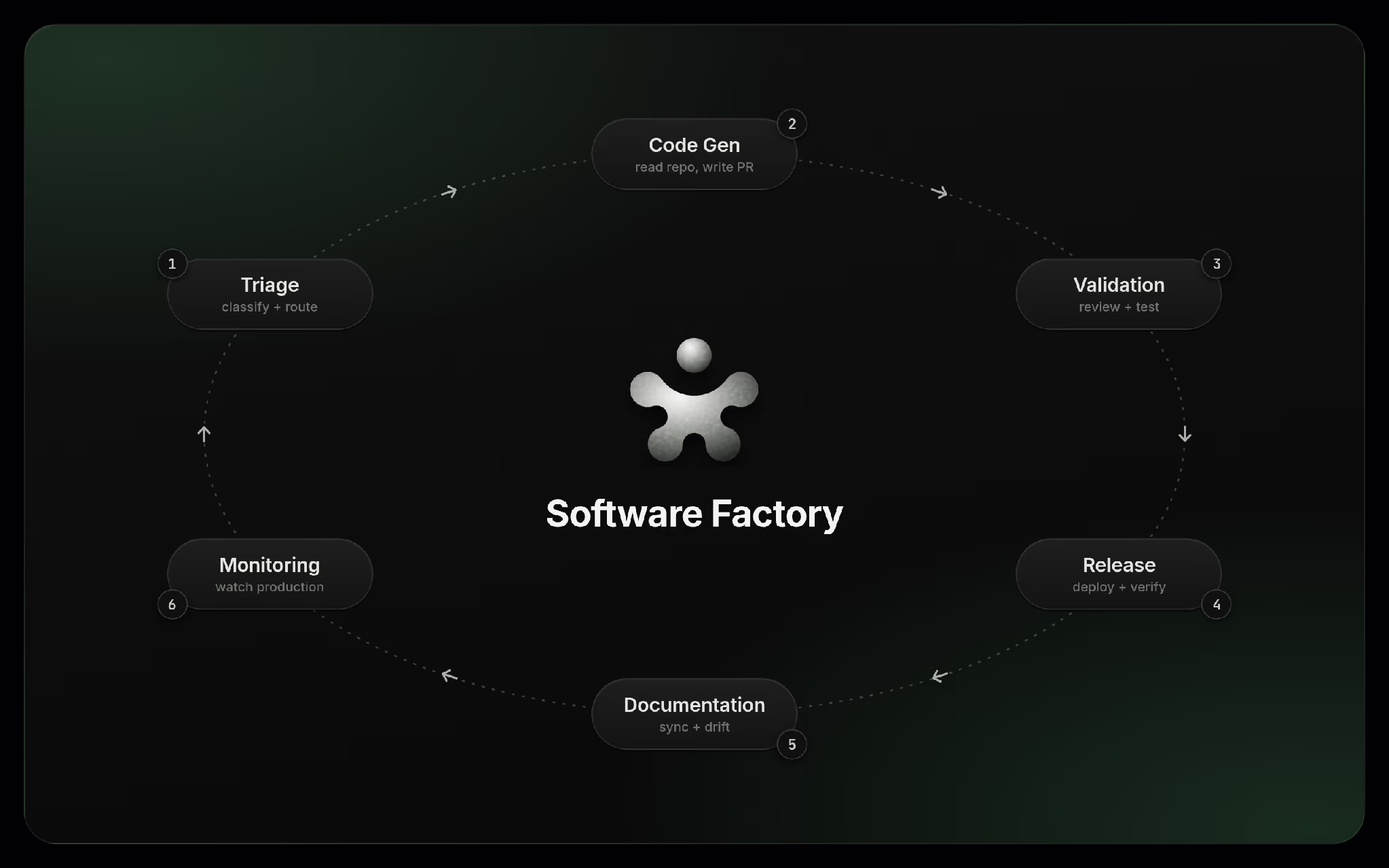

Multi-agent system architectures

You move to multi-agent systems when one agent can no longer handle the prompt complexity, tool count, or security boundaries a task requires. Specialized agents each own a domain and coordinate to solve the whole problem. Multi-agent systems commonly follow one of three shapes.

• Vertical: a leader agent oversees subtasks and specialist agents report back, giving clear accountability with a single point of failure risk.

• Horizontal: peer agents collaborate as equals with parallel processing, strong for brainstorming but slower to reach consensus.

• Hybrid: leadership shifts by phase, combining structure with collaboration at the cost of coordination overhead.

Each shape buys you specialization and scalability while adding latency, cost, and new failure modes.

How to choose between them

You should default to the lowest complexity that reliably works. If prompt engineering solves it, you do not need an agent. If a single agent with tools solves it, you do not need multiple agents. Each step up the ladder adds coordination overhead, latency, and cost.

Move to a multi-agent design only when a single agent genuinely cannot handle the task, whether from tool overload, distinct security boundaries per agent, or work that benefits from parallel specialization. The same principle applies when evaluating frameworks and SDKs: pick the one that matches your actual complexity, not the one with the longest feature list.

Multi-agent orchestration patterns

You coordinate multiple agents through orchestration patterns, and each one fits a different kind of coordination. Choosing well means matching the pattern to whether your work is linear, parallel, conversational, or open-ended.

Sequential orchestration

You use sequential orchestration when each stage builds on the last. Agents chain in a fixed order, and each processes the output of the previous one, forming a pipeline of specialized transformations. This is also called prompt chaining or linear delegation.

It fits draft-review-polish workflows and data pipelines with clear dependencies. The weakness is that a failure or low-quality output early in the chain propagates forward, so validate output between stages before passing it on.

Concurrent orchestration

You use concurrent orchestration when multiple agents can work the same input independently. Each contributes analysis from its own specialization, and results are aggregated at the end through voting, weighted merging, or a synthesized summary. This fan-out then fan-in shape reduces latency for parallelizable work.

It shines when you want diverse perspectives fast, ensemble reasoning, or independent scoring. Avoid it when agents need each other’s output in sequence or when they contend over shared mutable state, which produces inconsistent results.

Supervisor agent pattern and group chat loops

You use a supervisor agent pattern when a central agent needs to delegate subtasks dynamically. The supervisor receives the goal, breaks it into units of work, assigns each to a specialist worker agent, and synthesizes the results. This gives you clear accountability with flexible task distribution.A detailed breakdown of this and other orchestration patterns is worth a read if you want the reasoning behind when each one earns its complexity.

You use group chat orchestration when a problem is best solved through discussion. Agents contribute to a shared thread while a chat manager decides who speaks next, supporting brainstorming, structured review, and consensus-building with optional human participation. Keep it to three or fewer agents to stay in control.

The maker-checker loop is a focused variant. One agent produces work, another evaluates it against defined criteria, and the loop repeats until the checker approves or an iteration cap is reached. Always set that cap and define fallback behavior, such as escalating to a human reviewer.

Handoff orchestration

You use handoff orchestration when the right specialist only becomes clear during processing. One active agent handles the task and transfers full control to a more appropriate agent when it hits its capability limit. This is triage and routing: a support agent passing a billing dispute to a financial specialist, then on to a human if needed.

Only one agent works at a time, and the handoff chain produces a single result. Guard against infinite handoff loops and excessive bouncing between agents, which frustrate users and burn tokens.

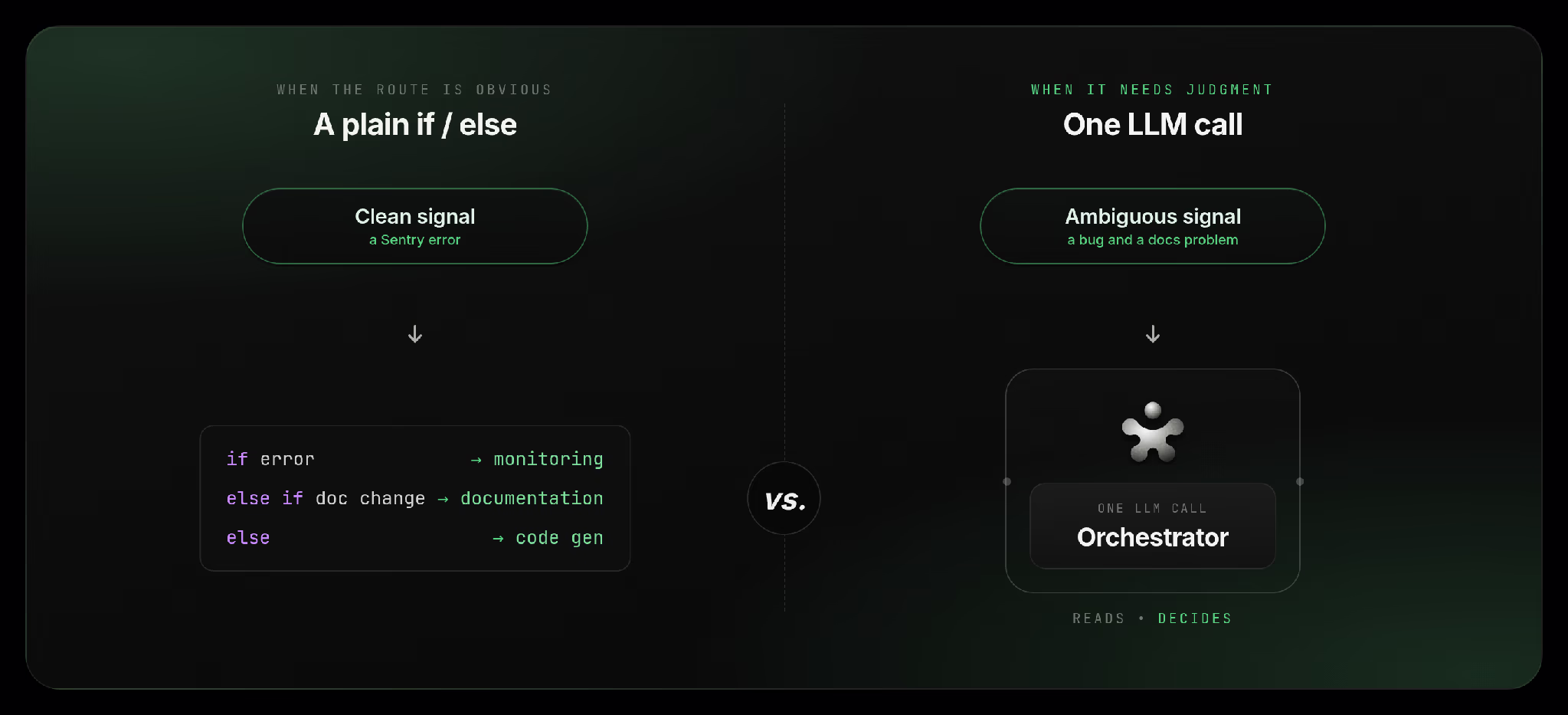

Deterministic routing vs. LLM-driven routing

You control agent flow through a router, and the routing strategy shapes how predictable your system is. Deterministic routing uses rules or a classifier to send input to a fixed destination. It is reproducible and easy to test. LLM-driven routing lets the model choose the next function or sub-agent based on metadata and intent.

Rule-based, semantic, hierarchical, and LLM-based routing sit on a spectrum from rigid to fully autonomous. Frameworks like LangChain and LangGraph provide router abstractions for building these flows, while CrewAI focuses on multi-agent coordination with role-based routing. Use deterministic routing for inherently deterministic workflows and reserve LLM-driven routing for genuinely dynamic decisions. Matching the routing style to the nature of the task is one of the highest-impact choices in the whole design.

Designing agent workflows and orchestration

You turn orchestration patterns into running systems through workflow design. The concerns here are control flow, durability, and knowing when to pause for a human, all of which determine whether your agent survives real-world interruptions.

Graph-based orchestration and control flow

You gain precise control by modeling an agent workflow as a graph. Nodes represent agents or functions, and edges define how control moves between them. This makes execution explicit and inspectable instead of hidden inside an opaque loop, which is exactly what you want when debugging a nondeterministic system.

A workflow engine that lets you chain steps and branch conditionally keeps the deterministic skeleton of your agent in code you can read and test, while the model handles decisions within each step.

Durable execution and state management

You need state management that survives failure. For long-running or multi-interaction tasks, keep shared state in a durable external store rather than in-memory context. Persist task progress, intermediate results, and history so an agent can resume after an interruption instead of replaying everything.

This also controls context growth. In multi-agent runs, context balloons as each agent adds reasoning and tool output, so apply compaction, summarize or prune between steps, to stay within model limits. Scope persisted state to the minimum needed to reduce both token overhead and privacy risk.

Human-in-the-loop suspend and resume

You cannot let every agent act fully autonomously. Human-in-the-loop design inserts approval gates where errors are costly or compliance demands manual review. The workflow suspends at the checkpoint, waits for a human to approve or add input, then resumes.

Persist state at every gate so the workflow can resume without replaying prior work. You can scope gates to specific high-risk tool calls rather than entire agent outputs, letting autonomous systems run freely for low-risk actions and pausing only when it genuinely matters.

Selecting the right AI agent architecture for your use case

You get better outcomes by matching architecture to the problem instead of reaching for the most sophisticated pattern. The discipline here is starting simple, combining patterns only when needed, and recognizing the antipatterns before they bite.

Start with the right level of complexity

You should climb the complexity ladder one rung at a time. A direct model call handles single-step tasks. A single agent with tools handles varied queries in one domain. Multi-agent orchestration handles cross-domain work that a single agent genuinely cannot.

Use the lowest level that reliably meets your requirements. Every rung adds coordination overhead, latency, and cost, so the burden of proof sits with added complexity, not with simplicity. Most enterprise use cases stop at a single agent with tools.

Combining orchestration patterns

You rarely need one pattern for an entire system. Different stages of a workload have different characteristics, so combine patterns where it helps. You might run sequential orchestration for initial data processing, then switch to concurrent orchestration for parallelizable analysis.

Do not force a single pattern onto a workflow whose stages disagree. Let each stage use the shape that fits it, and design the seams between stages carefully, since that is where state and error handling usually break.

Common pitfalls and antipatterns

You can avoid most agent disasters by knowing the recurring mistakes. These show up across nearly every failed multi-agent project.

• Using a complex pattern when sequential or single-agent would suffice.

• Adding agents that provide no meaningful specialization.

• Sharing mutable state between concurrent agents, causing inconsistent data.

• Using deterministic patterns for nondeterministic work, or the reverse.

• Ignoring context growth as autonomous systems accumulate reasoning and tool output.

Each of these trades real complexity for imagined benefit. When in doubt, remove an agent before you add one.

Observability, evals, and debugging agent runs

You cannot fix what you cannot see, and agents fail in ways traditional monitoring misses. An agent can return a clean response while quietly hallucinating, looping, or spending far more tokens than it should. Observability, evals, and guardrails are what turn a black box into a system you can operate.

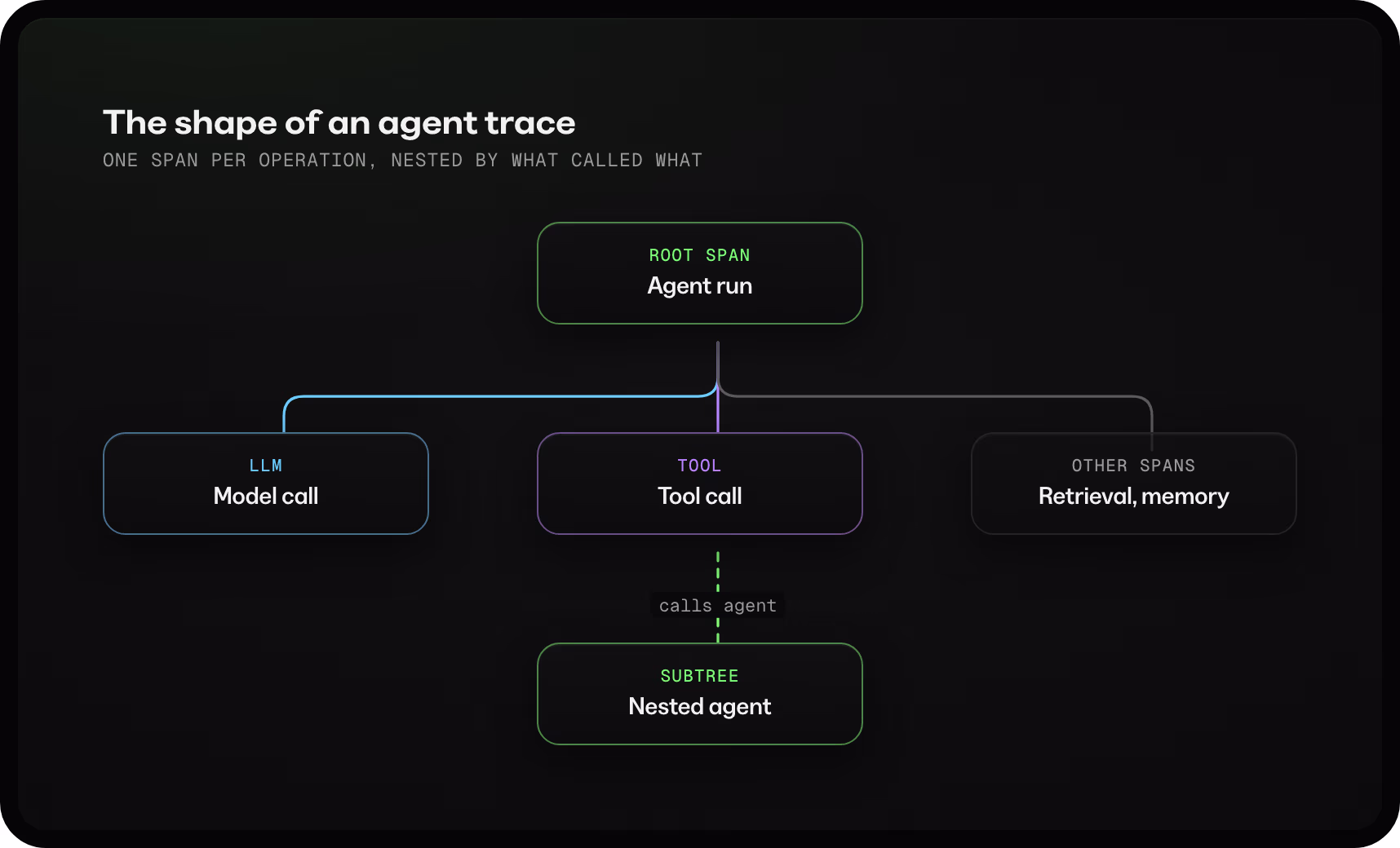

Tracing and monitoring agent execution

You need tracing that treats a single agent run as a tree of spans. Each model call, tool invocation, and workflow step becomes a span with its inputs, outputs, latency, and token usage, so you can see exactly what the agent decided and where it spent its budget.

Instrument every agent operation and handoff. In distributed multi-agent systems, this is the only practical way to find bottlenecks and trace a failure back to the step that caused it. Without it, you are debugging nondeterministic behavior from logs alone.

Establishing evaluation metrics and datasets

You should measure agent quality before you ship, not after users complain. Agents are nondeterministic, so the same input can produce different output on different runs. Establish metrics for accuracy, cost, latency, and consistency early, and never launch without an evaluation strategy.

Because outputs vary, use scoring rubrics or LLM-as-judge evaluations against a dataset rather than exact-match assertions. Run these in your pipeline to catch regressions before they reach production, the same way you would run unit tests on deterministic code.

Guardrails and prompt-injection defense

You have to constrain what an agent can do and say. Apply content safety guardrails at multiple points: user input, tool calls, tool responses, and final output. Intermediate agents can introduce or propagate harmful content, so a single check at the boundary is not enough.

Prompt injection is a live threat whenever an agent ingests untrusted text. Validate and sanitize input, scope each agent to least privilege, and set temperature toward zero for deterministic operations. Mastra’s evals and tracing let you catch both quality regressions and unsafe outputs as part of the same run.

Security, governance, and reliability in production

You inherit new risk when you give a model the ability to act. Agents call tools, touch data, and make decisions on their own, which expands the attack surface and the blast radius of a mistake. Production readiness means designing for security, governance, and reliability from the start.

Security risks in agent architectures

You expose real risk the moment an agent can invoke tools and access data. The main threats include prompt injection, over-broad tool permissions, data leakage across agents, and unsafe outputs reaching downstream systems. Multi-agent designs multiply these by adding inter-agent communication as another attack surface.

Secure the communication between agents, authenticate every hop, and enforce least privilege so each agent touches only the data its task requires. Security trimming must run in every agent, since an agent with broad knowledge access must still avoid returning data the user cannot see.

Separating governance from execution logic

You keep autonomous systems auditable by separating what an agent is allowed to do from how it does its work. Governance rules, permissions, approval gates, and access policies belong in a distinct layer, not tangled into agent prompts or tool code where they are invisible and untestable.

This separation lets you change policy without rewriting agents, and it gives auditors a single place to verify controls. It also makes least-privilege enforceable, because access decisions live in one governed layer rather than scattered across every agent’s logic.

Compliance and audit trail requirements

You need a durable record of what your agents did and why. Design audit trails that capture the plan, the decisions, the tool calls, and the outcomes for every run. Many regulated domains require this, and even where they do not, it is what makes post-incident review possible.

The span-based traces you use for debugging double as audit trails. A complete, queryable history of each run supports compliance, incident analysis, and the ability to prove after the fact exactly what the system did with a user’s data.

Reliability and cost optimization

You have to treat agents as distributed systems, because they are. Expect node failures, network partitions, and cascading errors. Implement timeouts and retries, surface errors instead of hiding them, validate output before passing it downstream, and use circuit breakers for agent dependencies.

Cost tracks reliability closely. Multi-agent orchestrations multiply model calls, so assign each agent the smallest model that does its job well, monitor token consumption per agent, and compact context between steps. A classification agent rarely needs your most expensive model. Reusing stable prompt prefixes across calls is another lever that cuts repeated token costs without touching your architecture.

Best practices for building production agents

You get durable results by following a few principles that hold up across use cases. These are the habits that separate agents that survive production from ones that stall on their first real workload.

Adopt a simple, scalable architecture pattern

You should choose the simplest pattern that meets your needs and resist the pull toward elaborate designs. The field moves weekly, and it is tempting to combine many technologies, but complexity invites runaway loops and expensive usage spikes. For most use cases, a router pattern is more than enough.

Simple architectures are also easier to scale and hand off to teammates. A design a new engineer can understand in an afternoon is a design you can operate under pressure. Reach for sophistication only when a simpler pattern demonstrably fails.

Prioritize data and metadata quality

You will find that agent quality tracks data quality more than model choice. Agents rely on context to choose their execution path, so the data you feed them must be clean, well-labeled, and carry the metadata and lineage they reason over. Poor data produces poor decisions no matter how capable the model.

Invest here early. Good retrieval, accurate tool descriptions, and clear metadata do more for reliability than most prompt tweaks. This is the least glamorous and most valuable work in the whole architecture.

Prompt engineering before fine-tuning

You should exhaust prompt engineering before you reach for fine-tuning. Fine-tuning is costly, and inference on a fine-tuned model is expensive, especially on cloud-hosted LLMs. Developers often jump to it to fix inconsistency when careful prompt work would have solved the same problem for a fraction of the cost.

Start with clear instructions, good examples, and low temperature for deterministic tasks. Measure, iterate, and only consider fine-tuning once prompting genuinely plateaus. Most inconsistency comes from vague prompts and weak context, not from an undertrained model.

Wrapping up

You do not need the most sophisticated architecture. You need the simplest one that reliably meets your requirements, wrapped in observability and guardrails so you can operate it under real conditions. If you are working in TypeScript, Mastra gives you the components, workflows, and observability to move from a demo to a production agent in one framework.
