Agents and Tools

Workflow steps are composable and typically run logic directly within the execute function. However, there are cases where calling an agent or tool is more appropriate. This pattern is especially useful when:

Generating natural language responses from user input using an LLM.
Abstracting complex or reusable logic into a dedicated tool.
Interacting with third-party APIs in a structured or reusable way.

Workflows can use Mastra agents or tools directly as steps, for example: createStep(testAgent) or createStep(testTool).

Agents

To include an agent in a workflow, define it in the usual way, then either add it directly to the workflow using createStep(testAgent) or, invoke it from within a step’s execute function using .generate().

Example Agent

This agent uses OpenAI to generate a fact about a city, country, and timezone.

src/mastra/agents/test-agent.ts


import { openai } from "@ai-sdk/openai";
import { Agent } from "@mastra/core/agent";

export const testAgent = new Agent({
  name: "test-agent",
  description: "Create facts for a country based on the city",
  instructions: `Return an interesting fact about the country based on the city provided`,
  model: openai("gpt-4o")
});

Agents As Step

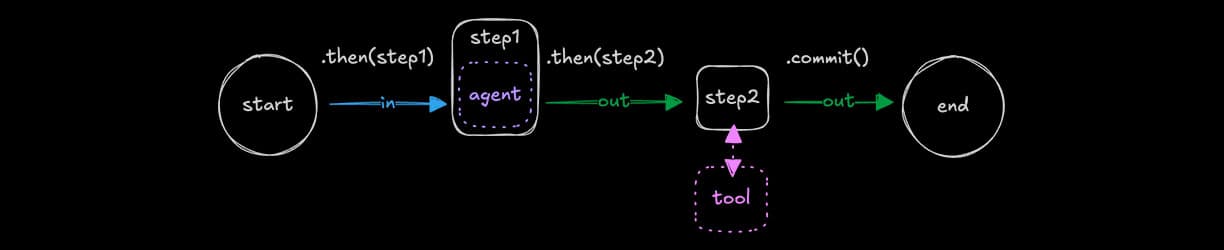

In this example, step1 uses the testAgent to generate an interesting fact about the country based on a given city.

The .map method transforms the workflow input into a prompt string compatible with the testAgent.

The step is composed into the workflow using .then(), allowing it to receive the mapped input and return the agent’s structured output. The workflow is finalized with .commit().

src/mastra/workflows/test-workflow.ts


import { testAgent } from "../agents/test-agent";

const step1 = createStep(testAgent);

export const testWorkflow = createWorkflow({
  id: "test-workflow",
  description: 'Test workflow',
  inputSchema: z.object({
    input: z.string()
  }),
  outputSchema: z.object({
    output: z.string()
  })
})
  .map(({ inputData }) => {
    const { input } = inputData;
    return {
      prompt: `Provide facts about the city: ${input}`
    };
  })
  .then(step1)
  .commit();

Agent Generate

In this example, the step1 builds a prompt using the provided input and passes it to the testAgent, which returns a plain-text response containing facts about the city and its country.

The step is added to the workflow using the sequential .then() method, allowing it to receive input from the workflow and return structured output. The workflow is finalized with .commit().

src/mastra/workflows/test-workflow.ts


import { testAgent } from "../agents/test-agent";

const step1 = createStep({
  id: "step-1",
  description: "Create facts for a country based on the city",
  inputSchema: z.object({
    input: z.string()
  }),
  outputSchema: z.object({
    output: z.string()
  }),

  execute: async ({ inputData }) => {
    const { input } = inputData;

    const  prompt = `Provide facts about the city: ${input}`

    const { text } = await testAgent.generate([
      { role: "user", content: prompt }
    ]);

    return {
      output: text
    };
  }
});

export const testWorkflow = createWorkflow({...})
  .then(step1)
  .commit();

Tools

To use a tool within a workflow, define it in the usual way, then either add it directly to the workflow using createStep(testTool) or, invoke it from within a step’s execute function using .execute().

Example Tool

The example below uses the Open Meteo API to retrieve geolocation details for a city, returning its name, country, and timezone.

src/mastra/tools/test-tool.ts


import { createTool } from "@mastra/core";
import { z } from "zod";

export const testTool = createTool({
  id: "test-tool",
  description: "Gets country for a city",
  inputSchema: z.object({
    input: z.string()
  }),
  outputSchema: z.object({
    country_name: z.string()
  }),
  execute: async ({ context }) => {
    const { input } = context;
    const geocodingResponse = await fetch(`https://geocoding-api.open-meteo.com/v1/search?name=${input}`);
    const geocodingData = await geocodingResponse.json();

    const { country } = geocodingData.results[0];

    return {
      country_name: country
    };
  }
});

Tools as Step

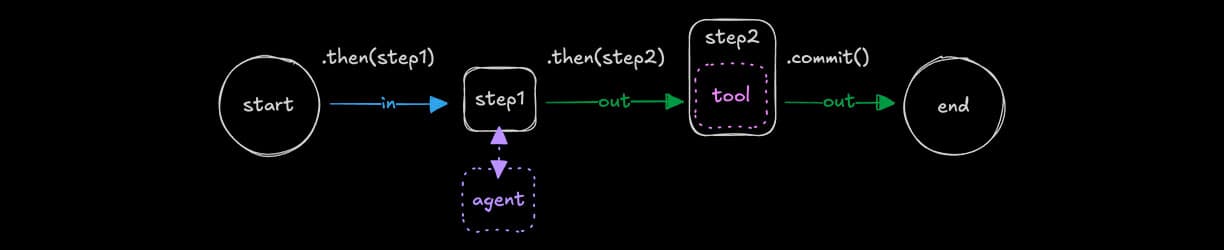

In this example, step1 uses the testTool, which performs a geocoding lookup using the provided city and returns the resolved country.

The step is added to the workflow using the sequential .then() method, allowing it to receive input from the workflow and return structured output. The workflow is finalized with .commit().

src/mastra/workflows/test-workflow.ts


import { testTool } from "../tools/test-tool";

const step1 = createStep(testTool);

export const testWorkflow = createWorkflow({...})
  .then(step1)
  .commit();

Tool Execute

In this example, step1 directly invokes testTool using its .execute() method. The tool performs a geocoding lookup with the provided city and returns the corresponding country.

The result is returned as structured output from the step. The step is composed into the workflow using .then(), enabling it to process workflow input and produce typed output. The workflow is finalized with .commit()

src/mastra/workflows/test-workflow.ts


import { RuntimeContext } from "@mastra/core/di";

import { testTool } from "../tools/test-tool";

const runtimeContext = new RuntimeContext();

const step1 = createStep({
  id: "step-1",
  description: "Gets country for a city",
  inputSchema: z.object({
    input: z.string()
  }),
  outputSchema: z.object({
    output: z.string()
  }),

  execute: async ({ inputData }) => {
    const { input } = inputData;

    const { country_name } = await testTool.execute({
      context: { input },
      runtimeContext
    });

    return {
      output: country_name
    };
  }
});

export const testWorkflow = createWorkflow({...})
  .then(step1)
  .commit();

Workflow As Tool

In this example the cityStringWorkflow workflow has been added to the main Mastra instance.

src/mastra/index.ts


import { Mastra } from "@mastra/core/mastra";

import { testWorkflow, cityStringWorkflow } from "./workflows/test-workflow";

export const mastra = new Mastra({
  ...
  workflows: { testWorkflow, cityStringWorkflow },
});

Once a workflow has been registered it can be referenced using getWorkflow from withing a tool.

src/mastra/tools/test-tool.ts


export const cityCoordinatesTool = createTool({
  id: "city-tool",
  description: "Convert city details",
  inputSchema: z.object({
    city: z.string()
  }),
  outputSchema: z.object({
    outcome: z.string()
  }),
  execute: async ({ context, mastra }) => {
    const { city } = context;
    const geocodingResponse = await fetch(`https://geocoding-api.open-meteo.com/v1/search?name=${city}`);
    const geocodingData = await geocodingResponse.json();

    const { name, country, timezone } = geocodingData.results[0];

    const workflow = mastra?.getWorkflow("cityStringWorkflow");

    const run = workflow?.createRun();

    const { result } = await run?.start({
      inputData: {
        city_name: name,
        country_name: country,
        country_timezone: timezone
      }
    });

    return {
      outcome: result.outcome
    };
  }
});

MCP Server

You can convert your workflows into tools by passing them into an instance of a Mastra MCPServer. This allows any MCP-compatible client to access your workflow.

The workflow description becomes the tool description and the input schema becomes the tool’s input schema.

When you provide workflows to the server, each workflow is automatically exposed as a callable tool for example:

run_testWorkflow.

src/test-mcp-server.ts


import { MCPServer } from "@mastra/mcp";

import { testAgent } from "./mastra/agents/test-agent";
import { testTool } from "./mastra/tools/test-tool";
import { testWorkflow } from "./mastra/workflows/test-workflow";

async function startServer() {
  const server = new MCPServer({
    name: "test-mcp-server",
    version: "1.0.0",
    workflows: {
      testWorkflow
    }
  });

  await server.startStdio();
  console.log("MCPServer started on stdio");
}

startServer().catch(console.error);

To verify that your workflow is available on the server, you can connect with an MCPClient.

src/test-mcp-client.ts


import { MCPClient } from "@mastra/mcp";

async function main() {
  const mcp = new MCPClient({
    servers: {
      local: {
        command: "npx",
        args: ["tsx", "src/test-mcp-server.ts"]
      }
    }
  });

  const tools = await mcp.getTools();
  console.log(tools);
}

main().catch(console.error);

Run the client script to see your workflow tool.


npx tsx src/test-mcp-client.ts
