Agents and Tools

Workflow steps can call agents to leverage LLM reasoning or call tools for type-safe logic. You can either invoke them from within a step's execute function or compose them directly as steps using createStep().

Using agents in workflows

Use agents in workflow steps when you need reasoning, language generation, or other LLM-based tasks. Call from a step's execute function for more control over the agent call (e.g., track message history or return structured output). Compose agents as steps when you don't need to modify how the agent is invoked.

Calling agents

Call agents inside a step's execute function using .generate() or .stream(). This lets you modify the agent call and handle the response before passing it to the next step.

src/mastra/workflows/test-workflow.ts

const step1 = createStep({
  execute: async ({ inputData, mastra }) => {
    const { message } = inputData;

    const testAgent = mastra.getAgent("testAgent");
    const response = await testAgent.generate(
      `Convert this message into bullet points: ${message}`,
      {
        memory: {
          thread: "user-123",
          resource: "test-123",
        },
      },
    );

    return {
      list: response.text,
    };
  },
});

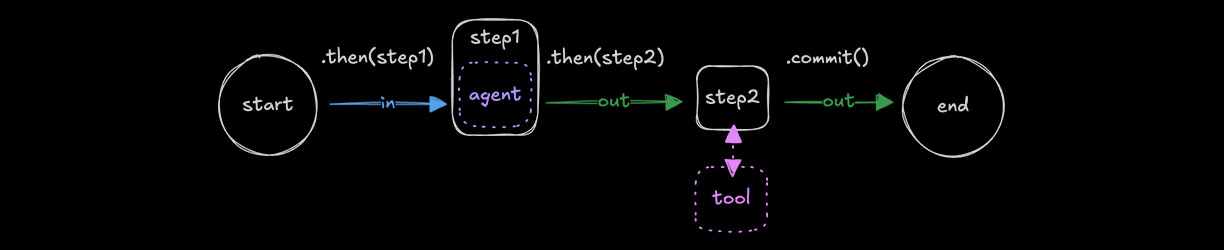

Agents as steps

Compose an agent as a step using createStep() when you don't need to modify the agent call. Use .map() to transform the previous step's output into a prompt the agent can use.

src/mastra/workflows/test-workflow.ts

import { testAgent } from "../agents/test-agent";

const step1 = createStep(testAgent);

export const testWorkflow = createWorkflow({
})
  .map(async ({ inputData }) => {
    const { message } = inputData;
    return {
      prompt: `Convert this message into bullet points: ${message}`,
    };
  })
  .then(step1)
  .then(step2)
  .commit();

info

Visit Input Data Mapping for more information.

When no structuredOutput option is provided, Mastra agents use a default schema that expects a prompt string as input and returns a text string as output:

{
  inputSchema: {
    prompt: string
  },
  outputSchema: {
    text: string
  }
}

Agents with structured output

When you need the agent to return structured data instead of plain text, pass the structuredOutput option to createStep(). The step's output schema will match your provided schema, enabling type-safe chaining to subsequent steps.

src/mastra/workflows/test-workflow.ts

const articleSchema = z.object({
  title: z.string(),
  summary: z.string(),
  tags: z.array(z.string()),
});

const agentStep = createStep(testAgent, {
  structuredOutput: { schema: articleSchema },
});

// Next step receives typed structured data
const processStep = createStep({
  id: "process",
  inputSchema: articleSchema, // Matches agent's outputSchema
  outputSchema: z.object({ tagCount: z.number() }),
  execute: async ({ inputData }) => ({
    tagCount: inputData.tags.length, // Fully typed
  }),
});

export const testWorkflow = createWorkflow({})
  .map(async ({ inputData }) => ({
    prompt: `Generate an article about: ${inputData.topic}`,
  }))
  .then(agentStep)
  .then(processStep)
  .commit();

The structuredOutput.schema option accepts any Zod schema. The agent will generate output conforming to this schema, and the step's outputSchema will be automatically set to match.

info

Visit Structured Output for more options like error handling strategies and streaming with structured output.

Using tools in workflows

Use tools in workflow steps to leverage existing tool logic. Call from a step's execute function when you need to prepare context or process responses. Compose tools as steps when you don't need to modify how the tool is used.

Calling tools

Call tools inside a step's execute function using .execute(). This gives you more control over the tool's input context, or process its response before passing it to the next step.

src/mastra/workflows/test-workflow.ts

import { testTool } from "../tools/test-tool";

const step2 = createStep({
  execute: async ({ inputData, requestContext }) => {
    const { formatted } = inputData;

    const response = await testTool.execute(
      { text: formatted },
      { requestContext },
    );

    return {
      emphasized: response.emphasized,
    };
  },
});

info

Visit Calling Tools for more examples.

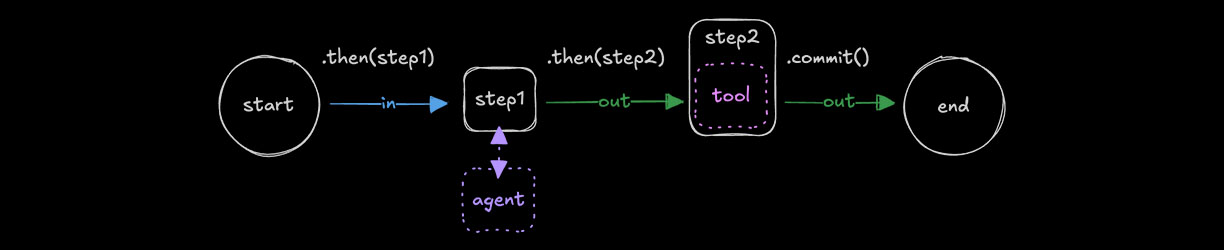

Tools as steps

Compose a tool as a step using createStep() when the previous step's output matches the tool's input context. You can use .map() to transform the previous step's output if they don't.

src/mastra/workflows/test-workflow.ts

import { testTool } from "../tools/test-tool";

const step2 = createStep(testTool);

export const testWorkflow = createWorkflow({})
  .then(step1)
  .map(async ({ inputData }) => {
    const { formatted } = inputData;
    return {
      text: formatted,
    };
  })
  .then(step2)
  .commit();

info

Visit Input Data Mapping for more information.
